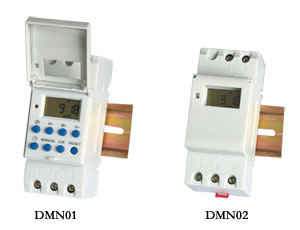

LXT15 Din-rail Microcomputer Timer Switch

Function and Application
Timer switch is applied to automatically switch on and switch off various kinds of electric equipment at a fixed time. It is widely applied to programmable control of electric cooker, booster, lamp, water heater, sprayer, bottler, preheater, agriculture facilities, broadcasting equipment, etc.
Zhejiang Lixin Instrument Manufacturing Co., Ltd. is a professional electricity instrument manufacturer who can also provide timer switch for different equipment. Owing to the stable performance of our timer switch, it is exported to many countries that include Mexico, Argentine, Indonesia, Malaysia, Ecuador, Greece and more.

Technical Specification
Voltage Range: 180-240V 50Hz
Capacitance: Resistance Load: 16A, Induction Load: 10A
Timing Control Range: 1min~168h
Temperature: -10℃~+50℃
Dimension: 36×86×65mm
Memory backup: 30day
Consumed power<4VA
Timing error<±2s/day(25℃±1℃)
Relative Humidity: <95%
Weight: 120g

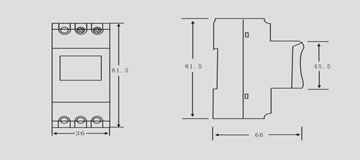

    Wire connection            Outer and mount dimension
