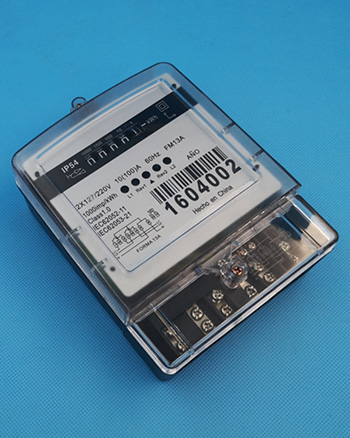

DSS238-7 two phase three wire din rail type watt hour meter (D2705)

DDS238 single phase static watt hour meter (E1202A/E1202L)

D2705

Display mode:
LCD

Display format:
①XXXXXX.X(6-digit integer + 1-digit decimal) (Default)
②XXXXX.XX(5-digit integer + 2-digit decimal)


Description
This meter is used for measuring two phase three wire AC active energy. Made by SMT process, the meter satisfies the standards of IEC62053-21 and IEC62052-11.

Features
1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Reverse indicator will light if the reverse electricity is measured.
3. Impulse indicator light will flicker to show working status when passive pulse outputs.
4. Phase loss LED alert light indicator
5. Measurement for phase loss. The metering precision will not be affected at all if any one phase of the two phase three wire meter cut off.
6. Even after power failure, all data can be stored and lasting for more than 15 years.
7. The width of meter is only 125mm. 35mm DIN-rail installation. Similar shape as 7P breaker.

Technical Data

Rate voltage DSS238-7 three phase three wire(two phase three wire) 2x120/208V , 2x127/220 , 3x220V , 3x380V , 3x400V
Working voltage range 0.8~1.2Un
Rate Current 5A/CT,1.5(6)A,5(30)A ,5(60)A ,10(100)A, or other as required
Frequency 50Hz or 60Hz
Connection mode CT type or Direct type
Display mechanical step register or LCD
Accuracy class 1.0
Power consumption < 0.5W/5VA /each phase
Start current 0.004Ib
AC voltage withstand 4000V/25mA for 60 sec
Impulse Voltage 6kV 1.2μs waveform
IP grade IP20
Constant 400~6400 imp/kWh
Pulse output Passive pulse, pulse width is 80+5 ms
Executive standard DIN 43880 IEC62053-21 IEC62052-11
Work temperature -30℃~70℃
Outline dimension LXMXH 125x88x73mm
Weight Approx 0.5kg

Environment

Operating temperature -25℃~55℃
Storage temperature -40℃~80℃
Reference temperature 23℃+2℃
Relative humidity 0 to 95% , non-condensing
Altitude Up to 2500m
Warm up time 10s
Mechanical Environment M1
Electromagnetic Environment E2
Degree of pollution 2

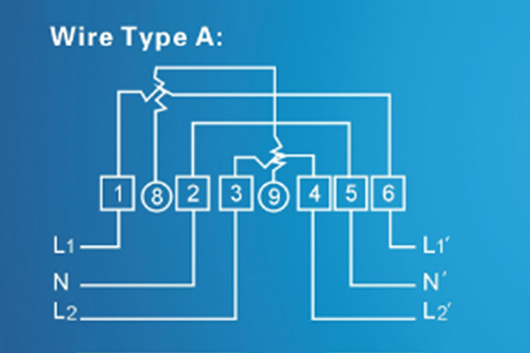

Wire connection

(1) three phase three wire direct connection
DSS238-7 two phase three wire din rail type watt hour meter (D2705)

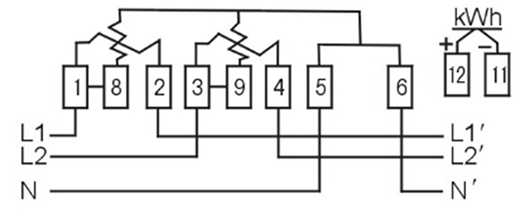

(2) two phase fthree wire direct connection
DSS238-7 two phase three wire din rail type watt hour meter (D2705)

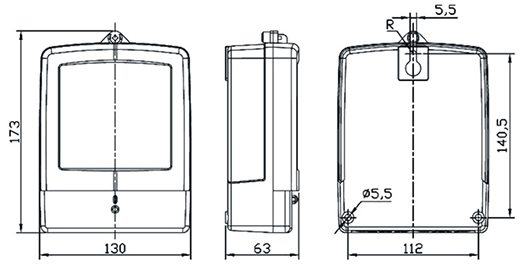

Outline dimension

DSS238-7 two phase three wire din rail type watt hour meter (D2705)
