E2301
Display mode:
Mechanical register display
Display format:
①XXXXX.X (5-digit integer + 1-digit decimal)(Default)
②XXXXXX.X(6-digit integer + 1-digit decimal)
③XXXXXX (6-digit integer)
④XXXXX (5-digit integer)
Description

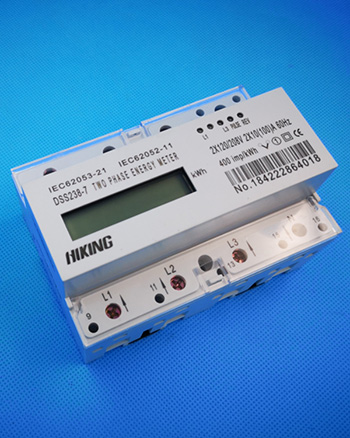

This meter is used for measuring two phase three wire AC active energy. Made by SMT process, the meter satisfies the standards of IEC62053-21 and IEC62052-11.
Features
1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Reverse indicator will light if the reverse electricity is measured.
3. Impulse indicator light will flicker to show working status when passive pulse outputs.
4. Phase loss LED alert light indicator
5. Measurement for phase loss. The metering precision will not be affected at all if any one phase of the two phase three wire meter cut off.
6. Built-in three phase current and voltage hook, equipotential anti-tamper design.
Optional Function
1. Reverse indicator light
2. Shell utilizes ultrasonic sealing instead of screw sealing
Technical Data
| Rate voltage | DSS238 three phase three wire(two phase three wire) 2x120/208V , 2x127/220 , 3x220V , 3x380V |
| Working voltage range | 0.8～1.2Un |
| Rate Current | 10(40)A,5(60)A,10(100)A, or special required |
| Frequency | 50Hz or 60Hz |
| Connection mode | Direct type |
| Display | mechanical step register |
| Accuracy class | Active class 1.0 |
| Power consumption | < 1W/10VA |
| Start current | 0.004Ib |
| AC voltage withstand | 4000V/25mA for 60 sec |
| Impulse Voltage | 6kV 1.2μs waveform |
| IP grade | IP51 |
| Constant | 200～6400 imp/kWh |
| Pulse output | Passive pulse, pulse width is 80+5 ms |
| Executive standard | IEC62053-21，IEC62052-11 |
| Work temperature | -30℃～70℃ |
| Outline dimension LXMXH | 173x130x63mm |
| Weight | Approx 0.9kg |
| Exporting country | El Guado，Colombia，Brazil |

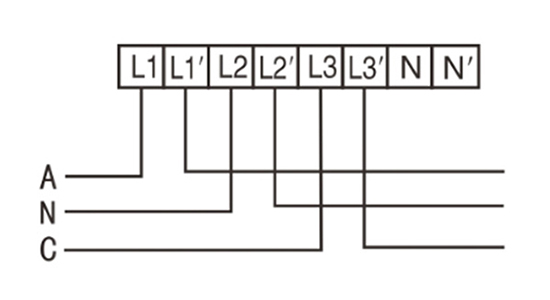

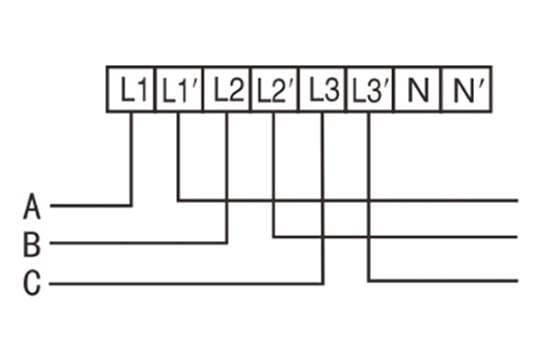

Wire connection

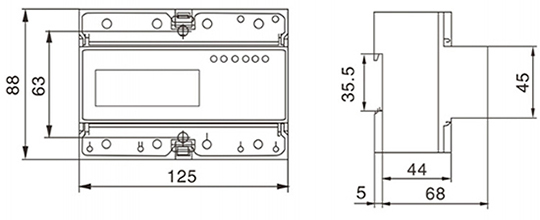

Outline dimension
