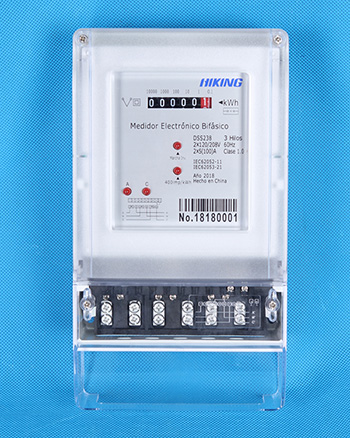

DSS238 two phase three wire static watt hour meter(E2302A/E2302L)

DDS238 single phase static watt hour meter (E1202A/E1202L)


Display mode:
Mechanical register display

Display format:
①XXXXX.X (5-digit integer + 1-digit decimal) (Default)
②XXXXXX.X(6-digit integer + 1-digit decimal)
③XXXXXX (6-digit integer)

With check valve
DDS238 single phase static watt hour meter (E1202A/E1202L)


Display mode:

Display format:
① XXXXXX.X(6-digit integer + 1-digit decimal) (Default)
②XXXXX.XX(5-digit integer + 2-digit decimal)
③XXXXX.X (5-digit integer + 1-digit decimal)
④XXXXXXX (7-digit integer)

These two meters could both be utilized for measuring two phase three wire or three phase three wire AC active energy. They are processed by SMT and conform to international standards of IEC62053-21 and IEC62052-11.

1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Impulse indicator light will flicker to show working status when passive pulse outputs.
3. Phase loss LED alert light indicator
4. Measurement for phase loss. The metering precision will not be affected at all if any one phase of the two phase three wire meter cut off.
5. Two types of case shells available: Protection I or Protection II.

Optional Function

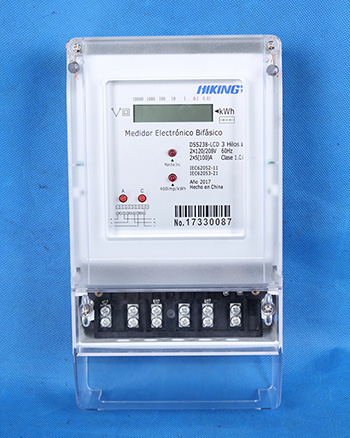

1. LCD shows two types of electricity bi-directionally. Forward and reverse electricity could be showed separately. (E2302L only)
2. Dead battery alert display (E2302L only) added
3. 48-hour supercapacitor power cut display (E2302L only) added
4. Shell utilizes ultrasonic sealing instead of screw sealing
5. Built-in three phase current and voltage hook. Equipotential anti-tamper design.

Technical Data

Rate voltage DSS238 three phase three wire(two phase three wire) 3x220V 2x120/208V
Working voltage range 0.8~1.2Un
Rate Current 10(40)A,5(60)A,10(100)A, or special required
Frequency 50Hz or 60Hz
Connection mode Direct type
Display mechanical step register or LCD
Accuracy class Active class 1.0
Power consumption < 1W/10VA
Start current 0.004Ib
AC voltage withstand 4000V/25mA for 60 sec
Impulse Voltage 6kV 1.2μs waveform
IP grade IP51
Constant 400~6400 imp/kWh
Pulse output Passive pulse, pulse width is 80+5 ms
Executive standard IEC62053-21,IEC62052-11
Work temperature -30℃~70℃
Outline dimension LXMXH 215x145x69mm (short terminal cover L1) 260x145x69mm (long terminal cover L2)
Weight Approx 0.9kg
Exporting country Peru,Colombia,El Guado,Brazil

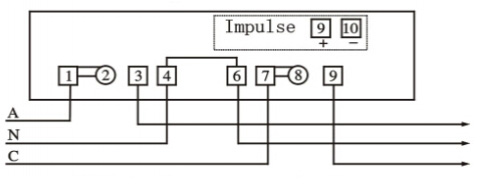

Wire connection

DSS238 two phase three wire static watt hour meter(E2302A/E2302L)

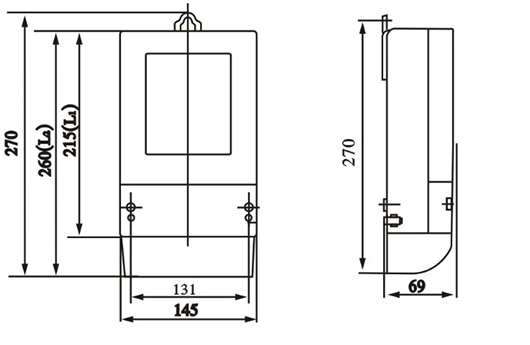

Outline dimension

DSS238 two phase three wire static watt hour meter(E2302A/E2302L)
