Description

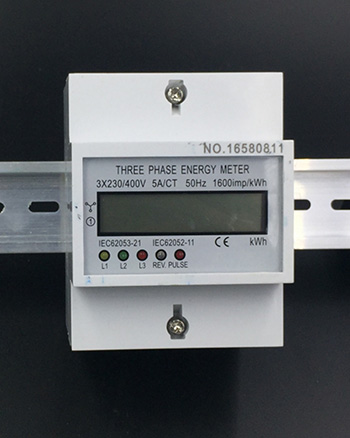

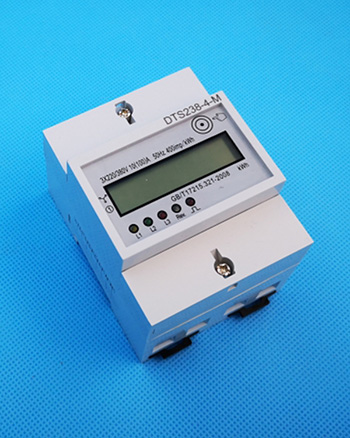

These two types of electricity meters are used to measure three phase four wire AC active energy. They are made by SMT (Surface mounting technology) process and conform to the standards of IEC62053-21 and IEC62052-11.

Features
1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Reverse electricity will be measured. Reverse indicator light available.
3. Passive pulse output, impulse indicator light will flicker while the meter is working.
4. Phase loss LED light indicator
5. Measurement for phase loss. The metering precision will not be influenced if any one phase or two phases of three phase four wire meter cut off.
6. While power cut, all storage data will not lose and can be saved for more than 15 years.
7. Meter width is only 70mm. 35mm DIN-rail installation. Similar shape as 4P breaker.

Optional Function
Real time electric quantity, three phase current, voltage, positive energy, reactive energy, energy factor and frequency measurement and display (D3403 only)

Technical Data

Rate voltage	DTS238-4 M three phase four wire 3x127/220V , 3x120/208V , 3x220/380V, 3x230/400V , 3x240/415V
	DSS238-4 M three phase three wire(two phase three wire) 2x120/208V , 2x127/220 , 3x220V , 3x380V , 3x400V ,
Working voltage range	0.8～1.2Un
Rate Current	5A/CT,1.5(6)A ,5(60)A ,10(100)A, or other as required
Frequency	50Hz or 60Hz
Connection mode	CT type or Direct type
Display	LCD
Accuracy class	1.0
Power consumption	< 1W/10VA /each phase
Start current	0.004Ib
AC voltage withstand	4000V/25mA for 60 sec
Impulse Voltage	6kV 1.2μs waveform
IP grade	IP20
Constant	400～6400 imp/kWh
Pulse output	Passive pulse, pulse width is 80+5 ms
Executive standard	DIN 43880 IEC62053-21 IEC62052-11
Work temperature	-30℃～70℃
Outline dimension LXMXH	70x90x70mm
Weight	Approx 0.5kg

Environment

Operating temperature	-25℃～55℃
Storage temperature	-40℃～80℃
Reference temperature	23℃+2℃
Relative humidity	0 to 95% , non-condensing
Altitude	Up to 2500m
Warm up time	10s
Mechanical Environment	M1
Electromagnetic Environment	E2
Degree of pollution	2

Wire connection

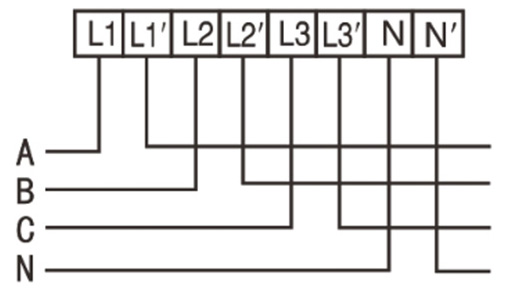

(1) three phase four wire direct connection

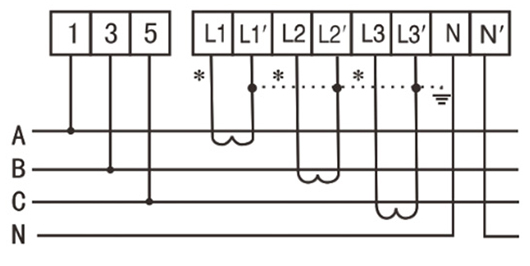

(2) three phase four wire through current transformer connection

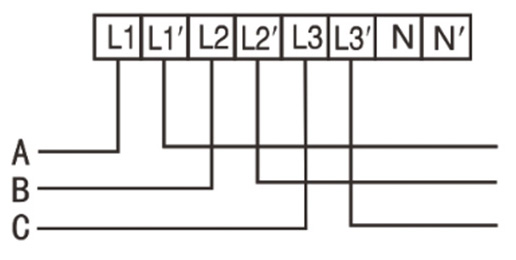

(3) three phase three wire direct connection

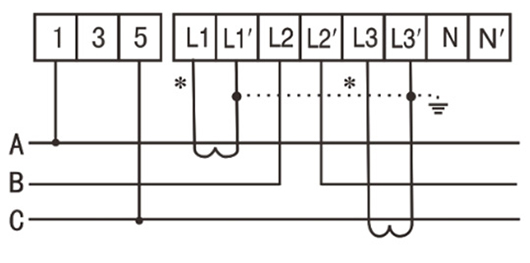

(4) three phase three wire through current transformer connection

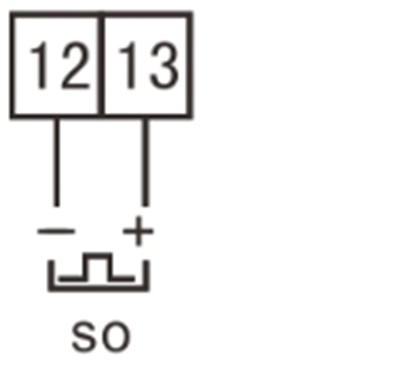

Terminal function

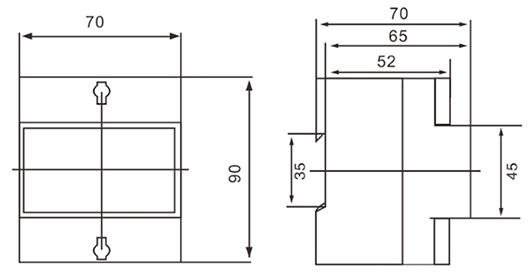

Outline dimension
