Three Phase DIN-rail KWH Meter
(Three Phase DIN-rail Meter, Three Phase DIN-rail Watt-hour Meter, Three Phase DIN-rail Energy Meter)

Three Phase DIN-rail KWH Meter (Three Phase DIN-rail Meter, Three Phase DIN-rail Watt-hour Meter, Three Phase DIN-rail Energy Meter)

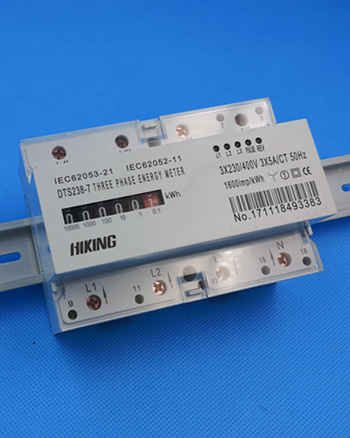

D3701A

Display mode:
Mechanical register display

Display format:
①XXXXX.X (5-digit integer + 1-digit decimal) (Default)
②XXXXXX (6-digit integer)


Three Phase DIN-rail KWH Meter (Three Phase DIN-rail Meter, Three Phase DIN-rail Watt-hour Meter, Three Phase DIN-rail Energy Meter)

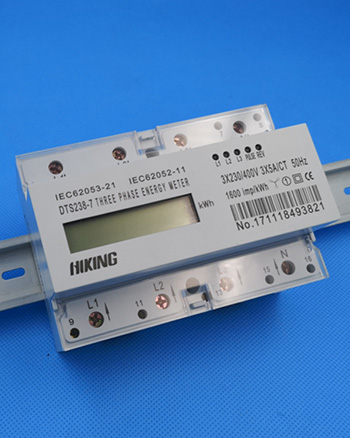

D3701L

Display mode:
LCD

Display format:
①XXXXXX.X(6-digit integer + 1-digit decimal) (Default)
②XXXXX.XX(5-digit integer + 2-digit decimal)

Description
These two types of electricity meters are used to measure three phase four wire AC active energy. They are made by SMT (Surface mounting technology) process and conform to the standards of IEC62053-21 and IEC62052-11.

Features
1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Reverse electricity will be measured. Reverse indicator light available.
3. Passive pulse output, impulse indicator light will flicker while the meter is working.
4. Phase loss LED light indicator
5. Measurement for phase loss. The metering precision will not be influenced if any one phase or two phases of three phase four wire meter cut off.
6. Meter width is only 125mm. 35mm DIN-rail installation. Similar shape as 7P breaker.

Technical Data

Rate voltage DTS238-7 three phase four wire 3x127/220V , 3x120/208V , 3x220/380V, 3x230/400V , 3x240/415V
DSS238-7 three phase three wire(two phase three wire) 2x120/208V , 2x127/220 , 3x220V , 3x380V , 3x400V ,
Working voltage range 0.8~1.2Un
Rate Current 5A/CT,1.5(6)A ,5(60)A ,10(100)A, or other as required
Frequency 50Hz or 60Hz
Connection mode CT type or Direct type
Display mechanical step register
Accuracy class 1.0
Power consumption < 0.5W/5VA/each phase
Start current 0.004Ib
AC voltage withstand 4000V/25mA for 60 sec
Impulse Voltage 6kV 1.2μs waveform
IP grade IP20
Constant 400~6400 imp/kWh
Pulse output Passive pulse, pulse width is 80+5 ms
Executive standard DIN 43880 IEC62053-21 IEC62052-11
Work temperature -30℃~70℃
Outline dimension LXMXH 125x88x73mm
Weight Approx 0.68kg

Environment

Operating temperature -25℃~55℃
Storage temperature -40℃~80℃
Reference temperature 23℃+2℃
Relative humidity 0 to 95% , non-condensing
Altitude Up to 2500m
Warm up time 10s
Mechanical Environment M1
Electromagnetic Environment E2
Degree of pollution 2

Wire connection

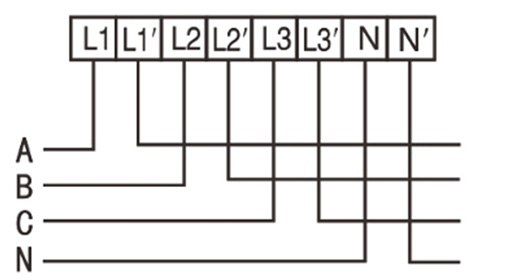

(1) three phase four wire direct connection
Three Phase DIN-rail KWH Meter (Three Phase DIN-rail Meter, Three Phase DIN-rail Watt-hour Meter, Three Phase DIN-rail Energy Meter)

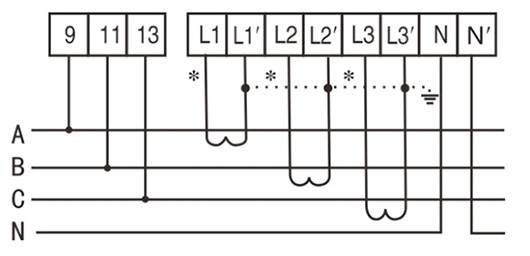

(2) three phase four wire through current transformer connection
Three Phase DIN-rail KWH Meter (Three Phase DIN-rail Meter, Three Phase DIN-rail Watt-hour Meter, Three Phase DIN-rail Energy Meter)

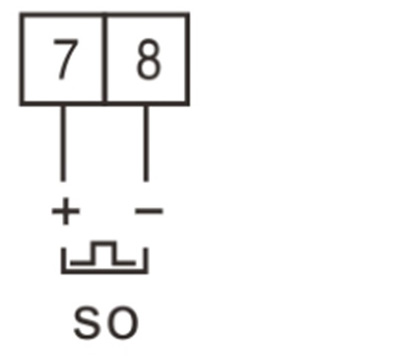

Terminal function

Three Phase DIN-rail KWH Meter (Three Phase DIN-rail Meter, Three Phase DIN-rail Watt-hour Meter, Three Phase DIN-rail Energy Meter)

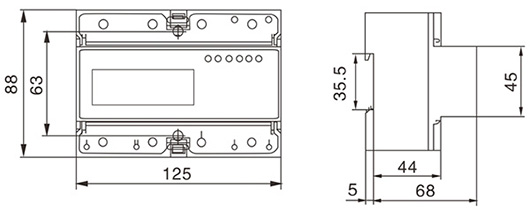

Outline dimension

Three Phase DIN-rail KWH Meter (Three Phase DIN-rail Meter, Three Phase DIN-rail Watt-hour Meter, Three Phase DIN-rail Energy Meter)
