Description

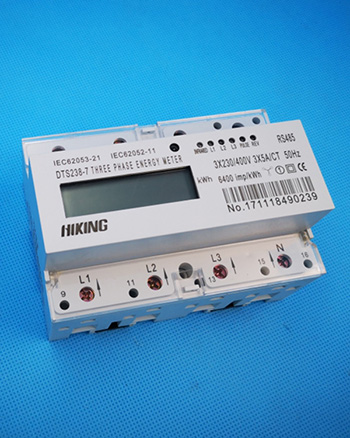

This electric meter is designed to measure three phase four wire AC active energy, suitable for three phase electric equipment and small and medium-sized enterprises and institutions, commercial and residential users who are charged by flat rate tariff. The meter meets IEC62053-21 and IEC62052-11 standards. Meter reading can be achieved by RS485 communication network.

Features
1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Reverse electricity will be measured. Reverse indicator light available.
3. Passive pulse output, impulse indicator light will flicker while the meter is working.
4. Phase loss LED light indicator
5. Measurement for phase loss. The metering precision will not be influenced if any one phase or two phases of three phase four wire meter cut off.
6. RS485 data communication terminal, compatible with DL/T645-2007 and MODBUS-RTU agreements.
7. Far infrared communication available.
8. While power cut, all storage data will not lose and can be saved for more than 15 years.
9. Meter width is only 125mm. 35mm DIN-rail installation. Similar shape as 7P breaker.

Optional Function
Electric quantity will display and battery power while black out. （can be customized）

Technical Data

Rate voltage	DTS238-7 RS485 three phase four wire 3x127/220V , 3x120/208V , 3x220/380V, 3x230/400V , 3x240/415V
	DSS238-7 RS485 three phase three wire(two phase three wire) 2x120/208V , 2x127/220 , 3x220V , 3x380V , 3x400V ,
Working voltage range	0.8～1.2Un
Rate Current	5A/CT,1.5(6)A,5(30)A ,5(60)A ,10(100)A, or other as required
Frequency	50Hz or 60Hz
Connection mode	CT type or Direct type
Display	LCD
Accuracy class	1.0
Power consumption	< 0.5W/5VA /each phase
Start current	0.004Ib
AC voltage withstand	4000V/25mA for 60 sec
Impulse Voltage	6kV 1.2μs waveform
IP grade	IP20
Constant	400～6400 imp/kWh
Pulse output	Passive pulse, pulse width is 80+5 ms
Communication port	RS485 port , baud rate 1200～9600 bps ，default is 9600bps ,address 1～247,None parity , stop bits 1 , data bits 8 .
Executive standard	DIN 43880 IEC62053-21 IEC62052-11
Work temperature	-30℃～70℃
Outline dimension LXMXH	125x88x73mm
Weight	Approx 0.7kg

Environment

Operating temperature	-25℃～55℃
Storage temperature	-40℃～80℃
Reference temperature	23℃+2℃
Relative humidity	0 to 95% , non-condensing
Altitude	Up to 2500m
Warm up time	10s
Mechanical Environment	M1
Electromagnetic Environment	E2
Degree of pollution	2

Wire connection

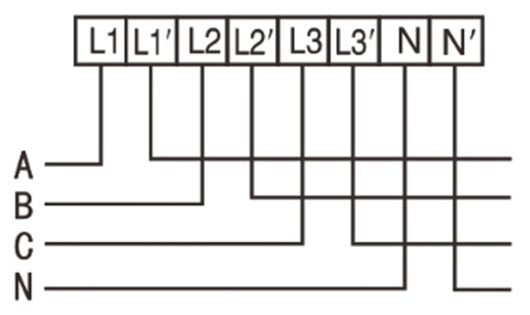

(1) three phase four wire direct connection

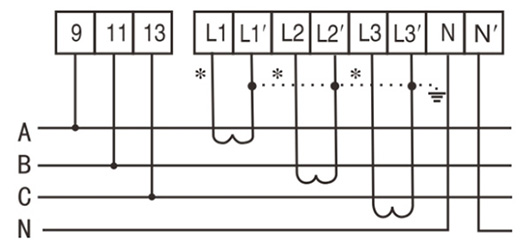

(2) three phase four wire through current transformer connection

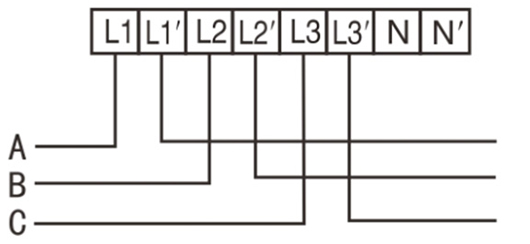

(3) three phase three wire direct connection

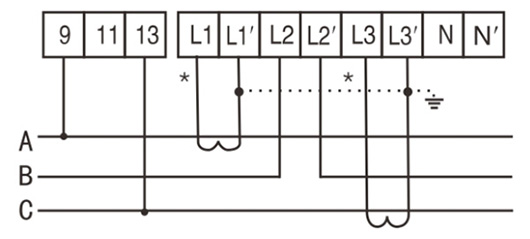

(4) three phase three wire through current transformer connection

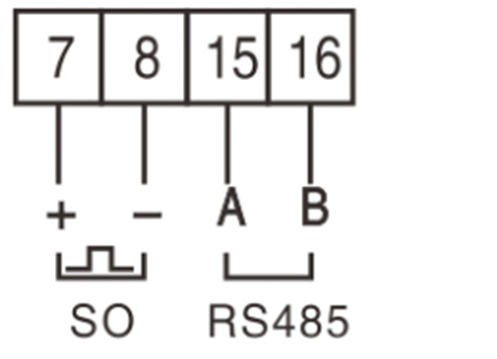

Terminal function

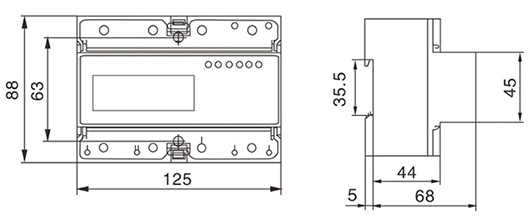

Outline dimension
