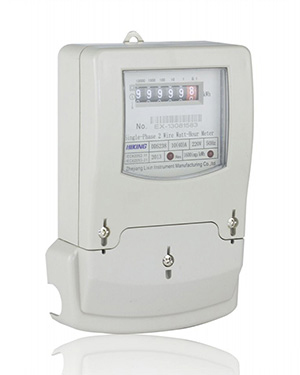

E1202A
Display mode:
Mechanical register display
Display format:
①XXXXX.X (5-digit integer + 1-digit decimal)（Default）
②XXXXXX.X(6-digit integer + 1-digit decimal)

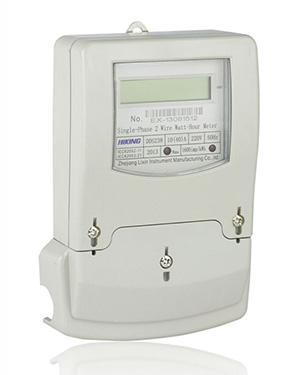

E1202L
Display mode:
LCD
Display format:
①XXXXXX.X(6-digit integer + 1-digit decimal) （Default）
②XXXXX.XX(5-digit integer + 2-digit decimal)
③XXXXX.X (5-digit integer + 1-digit decimal)
Description
The two types of electricity meters are used to measure single phase two wire AC active energy. Utilizing SMT (Surface mounting technology) to manufacture, the meters completely accord with the international standard IEC62053-21.
Features
1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Impulse indicator light will flicker to show working status when passive pulse outputs
3. Two kinds of case shells available: Protection I or Protection II.
Optional Function
1. Reverse indicator light
Technical Data
| Rate voltage | 110V,120V,220V,230V,240V |
| Working voltage range | 0.8～1.2Un |
| Rate Current | 10(40)A,5(60)A,10(100)A, or special required |
| Frequency | 50Hz or 60Hz |
| Connection mode | Direct type |
| Display | mechanical step register or LCD |
| Accuracy class | 1.0 |
| Power consumption | < 1W/10VA |
| Start current | 0.004Ib |
| AC voltage withstand | 4000V/25Ma for 60 sec |
| Impulse Voltage | 6Kv 1.2μs waveform |
| IP grade | IP51 |
| Constant | 800～6400 imp/kWh |
| Pulse output | Passive pulse, pulse width is 80+5 ms |
| Executive standard | IEC61036，IEC62053-21，IEC62052-11 |
| Work temperature | -30℃～70℃ |
| Outline dimension LXMXH | 183x121x62mm （long terminal cover） |
| Weight | Approx 0.4kg |
| Export country | Russia, Yemen |
Wire connection
Outline dimension
