D1101A
Display mode

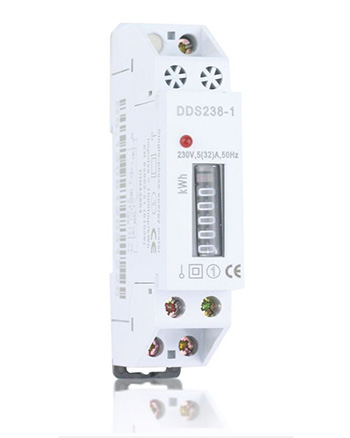

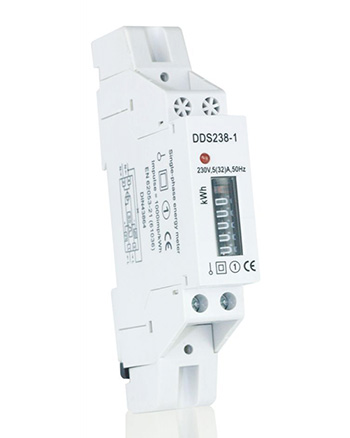

Mechanical register display
Display format
①XXXXX.X (5-digit integer + 1-digit decimal)
D1101L
Display mode

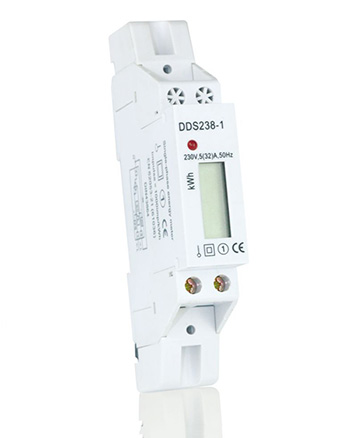

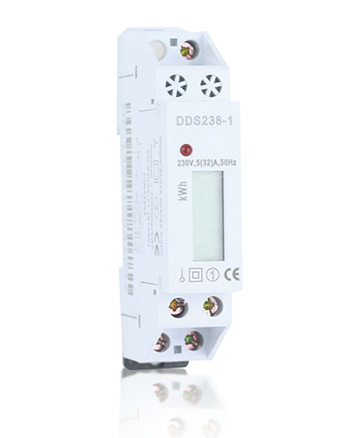

LCD
Display format
①XXXXXX.X(6-digit integer + 1-digit decimal)
Description
This meter is designed to measure single phase three wire AC active energy and perfect for the secondary circuits with flat rate tariff or single phase electric equipment with narrow interior space. Made by SMT (Surface mounting technology) manufacturing process, the meter is in accordance with standard IEC62053-21.
Features
1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Passive pulse output, conform to DIN43864 standard
3 Width of the meter is only 18mm. 35mm DIN-rail installation. Similar shape as 1P breaker.
Optional Function
Extended enclosure protection
Technical Data
| Rate voltage | 110V,120V,220V,230V,240V |
| Working voltage range | 0.8～1.2Un |
| Rate Current | 5(32),5(30) ,5(40) A |
| Frequency | 50Hz or 60Hz +10% |
| Connection mode | Direct type |
| Display | mechanical step register or LCD |
| Accuracy class | 1.0 |
| Power consumption | < 1W/10VA |
| Start current | 0.004Ib |
| AC voltage withstand | 4000V/25mA for 60 sec |
| Impulse Voltage | 6kV 1.2μs waveform |
| Over current withstand | 30Imax for 0.01s |
| IP grade | IP20 |
| Constant | 1000 imp/kWh or 1600imp/kwh |
| Pulse output | Passive pulse, pulse width is 80+5 ms |
| Executive standard | DIN 43880，IEC62053-21，IEC62052-11 |

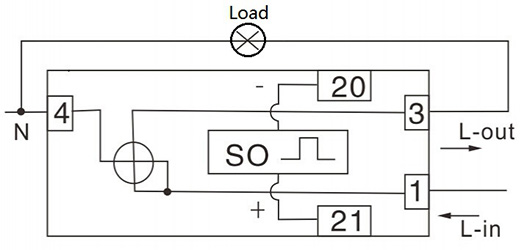

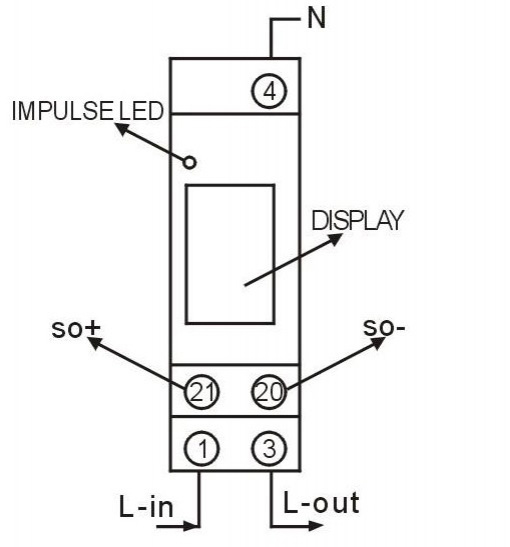

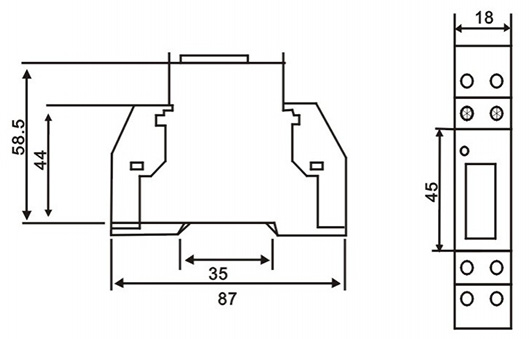

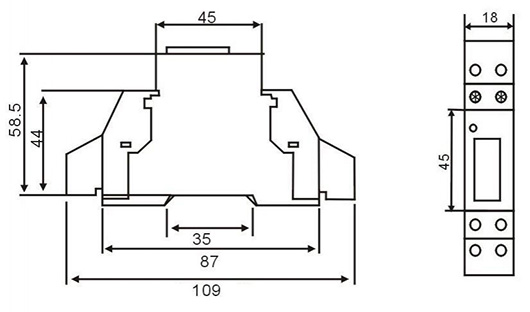

| Outline dimension LXMXH | 18x87x59.5mm（default） 18x109x59.5mm（long terminal cover） |
| Weight | Approx 0.07kg |
Environment
| Operating temperature | -25℃～55℃ |
| Storage temperature | -40℃～80℃ |
| Reference temperature | 23℃+2℃ |
| Relative humidity | 0 to 95% , non-condensing |
| Altitude | Up to 2500m |
| Warm up time | 10s |
| Mechanical Environment | M1 |
| Electromagnetic Environment | E2 |
| Degree of pollution | 2 |
