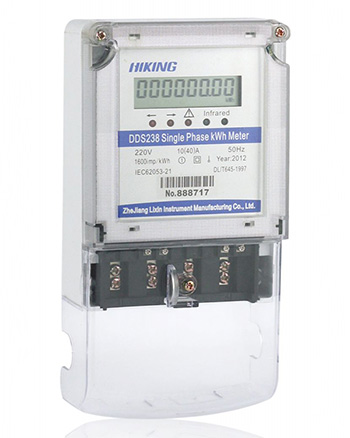

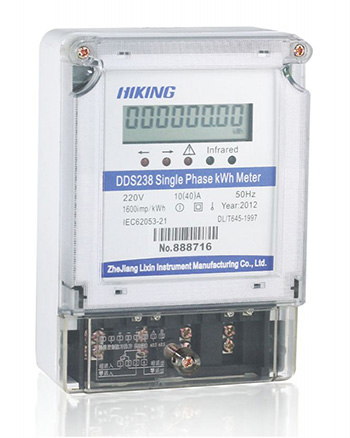

DDS238 single phase two wire RS485 type
(Single Phase Two Wire RS485 Type Watt-hour Meter, Single Phase Two Wire RS485 Type KWH Meter, Single Phase Two Wire RS485 Type Energy Meter)

DDS238
  • DDS238 single phase two wire RS485 type (Single Phase Two Wire RS485 Type Watt-hour Meter, Single Phase Two Wire RS485 Type KWH Meter, Single Phase Two Wire RS485 Type Energy Meter)
  • DDS238 single phase two wire RS485 type (Single Phase Two Wire RS485 Type Watt-hour Meter, Single Phase Two Wire RS485 Type KWH Meter, Single Phase Two Wire RS485 Type Energy Meter)

E1205

Display mode:
LCD

Display format:
①XXXXXX.XX(6-digit integer + 2-digit decimal)

Description
The two types of electricity meters are used to measure single phase two wire AC active energy. Utilizing SMT (Surface mounting technology) to manufacture, the meters completely accord with the international standard IEC62053-21.RS-485 data communication terminal is available upon request to perform remote data collection.

Features
1. Active energy is measured bi-directionally and reverse electricity will be measured and counted into total electricity.
2. Reverse indicator light
3. Impulse indicator light will flicker to show working status when passive pulse outputs.
4. Remote meter reading is available through RS485 communication interface conform to MODBUS-RTU and DL/T645-2007.
5. Support far infrared communication
6. Continuous data saving after power failure and lasting for more than 15 years.

Optional Function
1. Electricity display and battery power while black out (can be customized)
2. Built-in relay and remote switch (can be customized)
3. M-BUS meter reading system
4. Bi-directional electricity display, independent forward and reverse electricity display, suitable for the photovoltaic industry.

Technical Data

Rate voltage 110V,120V,220V,230,240V
Working voltage range 0.8～1.2Un
Rate Current 10(40)A,5(60)A,10(60)A or special required
Frequency 50Hz or 60Hz
Connection mode CT type or Direct type
Display LCD
Accuracy class 1.0
Power consumption < 1W/10VA
Start current 0.004Ib
AC voltage withstand 4000V/25mA for 60 sec
Impulse Voltage 6kV 1.2μs waveform
IP grade IP54
Constant 800～6400 imp/kWh
Pulse output Passive pulse, pulse width is 80+5 ms
Communication port RS485 port , 1200～9600bps
Infrared port 1200 bps
Executive standard IEC61036，IEC62053-21，IEC62052-11,
Work temperature -30℃～70℃
Outline dimension LXMXH 158x112x58mm （short terminal cover L1 ） 222x112x58mm （long terminal cover L2）
Weight Approx 0.5kg

Wire connection

DDS238 single phase two wire RS485 type (Single Phase Two Wire RS485 Type Watt-hour Meter, Single Phase Two Wire RS485 Type KWH Meter, Single Phase Two Wire RS485 Type Energy Meter)

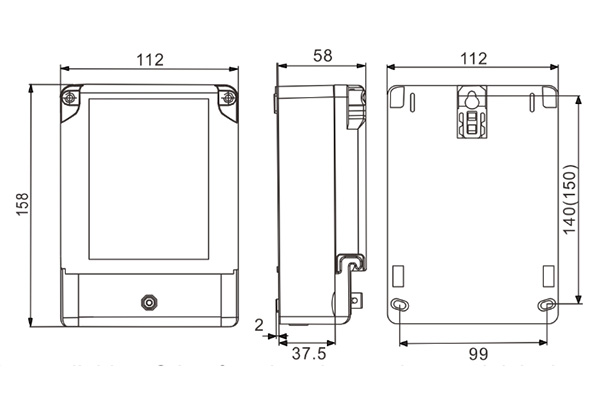

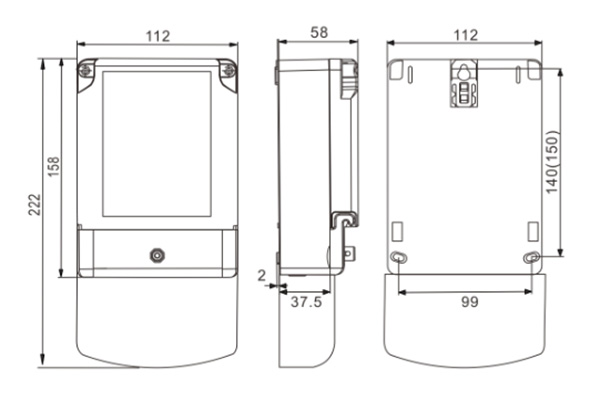

Outline dimension

  • DDS238 single phase two wire RS485 type (Single Phase Two Wire RS485 Type Watt-hour Meter, Single Phase Two Wire RS485 Type KWH Meter, Single Phase Two Wire RS485 Type Energy Meter)
  • DDS238 single phase two wire RS485 type (Single Phase Two Wire RS485 Type Watt-hour Meter, Single Phase Two Wire RS485 Type KWH Meter, Single Phase Two Wire RS485 Type Energy Meter)
