D1408
Display mode:
LCD
Display format:
①XXXXXX.XX(6-digit integer + 2-digit decimal)
Description

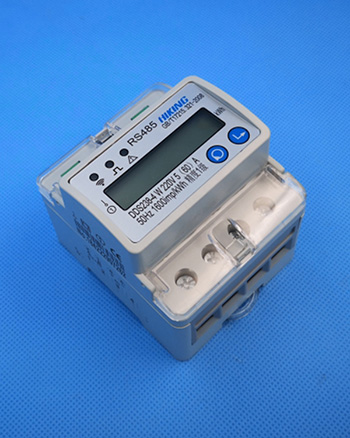

The electricity meter features advanced SoC (System on a Chip) design, SMT (Surface mounting technology) manufacturing process, simple circuit, high reliability and measuring precision to measure active energy, voltage, current, power and power factor. Dual data communication functions of WIFI and RS-485 are available, which feature good anti-interference and anti-attack performances and a wide range of applicable working temperatures to allow for long-term reliable and stable operation. Matched WIFI mobile software helps to realize remote viewing and switch control.
The meter is designed to measure single phase two wire AC active energy and suitable for users of secondary circuits with flat rate tariff or single phase electric equipment with narrow interior space. It is produced by SMT (Surface mounting technology) process and is in accordance with international standard IEC62053-21. RS-485 data communication terminal is available upon request to perform remote data collection.
Features
1. Active energy is measured bi-directionally and total, forward and reverse electricity can be showed.
2. Interval electric quantity display and reset mode available.
3. Realtime current, voltage, active power, reactive power, power factors and frequency measurement and display.
4. Remote switch control
5. Ultra-wide voltage operating range from 100V to270V
6. Remote meter reading is available through RS485 communication interface. The baud rate of data communication is 1200bps～9600bps, conform to MODBUS-RTU.
7. Passive pulse output, conform to DIN43864 standard
8. Continuous data saving after power failure and lasting for more than 15 years.
9. Width of the meter is only 76mm. 35mm DIN-rail installation. Similar shape as 4P breaker.
10. All connection lines are incoming and outgoing at the bottom.
Optional Function
WIFI module separately connects user’s meter reading system or mobile software (can be customized)
Technical Data
| Rate voltage | 110V～270V(wide voltage operation) |
| Working voltage range | 0.8～1.2Un |
| Rate Current | 5(60)A |
| Frequency | 50Hz or 60Hz +10% |
| Connection mode | Direct type |
| Display | LCD |
| Accuracy class | 1.0 |
| Power consumption | < 0.5W/5VA |
| Start current | 0.004Ib |
| AC voltage withstand | 4000V/25mA for 60 sec |
| Impulse Voltage | 6kV 1.2μs waveform |
| Over current withstand | 30Imax for 0.01s |
| IP grade | IP20 |
| Constant | 1600～3200 imp/kWh |
| Pulse output | Passive pulse, pulse width is 80+5 ms |
| Communication port | RS485 port , baud rate 1200～9600 bps ，default is 9600bps ,address 1～247,None parity , stop bits 1 , data bits 8 |
| Executive standard | DIN 43880，IEC62053-21，IEC62052-11,MODBUS-RTU |
| Outline dimension LXMXH | 93x76x78mm |
| Weight | Approx 0.36kg |
Accuracy
| Voltage | 0.5% |
| Current | 0.5% |
| Power Factor | 1% |
| Active power | ±1% |
| Reactive Power | ±2% |
| Active Energy (kWh) | Class 1.0 |
Environment
| Operating temperature | -25℃～55℃ |
| Storage temperature | -40℃～80℃ |
| Reference temperature | 23℃+2℃ |
| Relative humidity | 0 to 95% , non-condensing |
| Altitude | Up to 2500m |
| Warm up time | 10s |
| Mechanical Environment | M1 |
| Electromagnetic Environment | E2 |
| Degree of pollution | 2 |

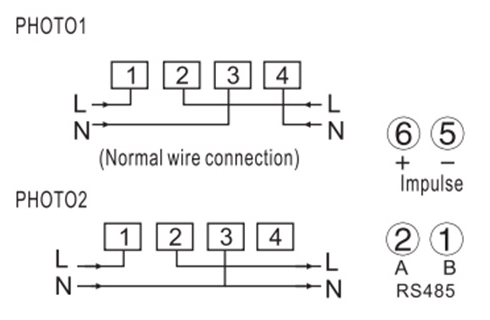

Wire connection
Outline dimension
